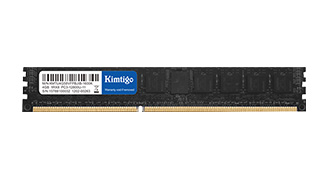

REG Memory VLP

Product features

• Design in accordance with the JEDEC standard;
• 18.75mm-high VLP;
• Built-in ECC and Parity functions;
•Synchronous data signal and consistent driving force in high-speed multi-load environment;
• High-standard PCB design with 8-10 layers of boards;
• 30 μ industrial gold-finger process;
• Server-class original DRAM chips selected.

INQUIRY

Product introduction

Specification parameters

Model	Bandwidth	Capacity	Voltage	Working temperature					CL	Pin	Gold finger
				Low temperature			High temperature
				-40°C	-20°C	0°C	85°C	95°C
DDR4-2666 REG UDIMM VLP	PC4-21300	4GB-8GB	1.2V		*	*	*	*	CL19	288-pin	30μ"
DDR4-2133 REG UDIMM VLP	PC4-17000	4GB-8GB	1.2V	*	*	*	*	*	CL15	288-pin	30μ"
*Indicates optional
