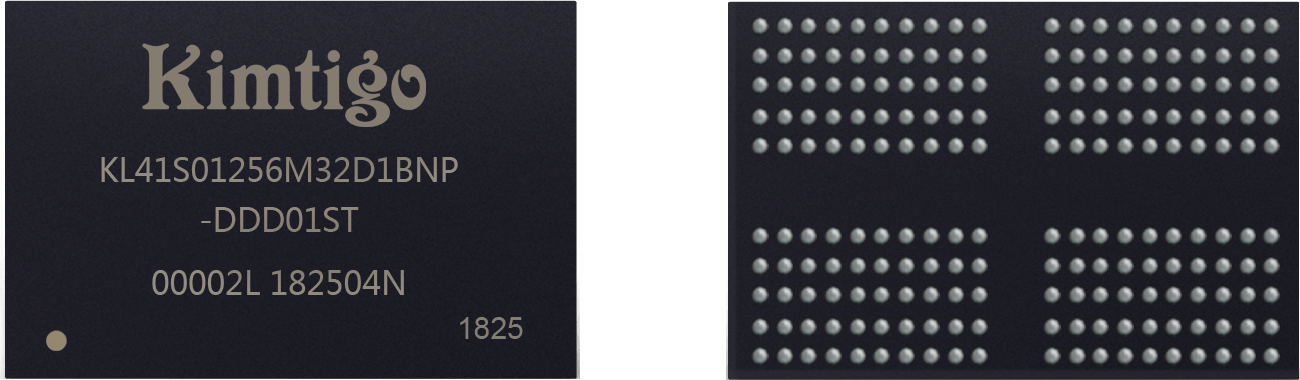

LPDDR4/4X-3200

Product features

•Clock frequency range: 1066-1600MHz;
•Transmission rate: 2133-3200mb / s Max;
•Environment-friendly halogen-free process;
•Speed level, access period: 625ps@RL=28/32 （x16 device);
•Operating temperature range: - 25 ℃ - 85 ℃.

INQUIRY

Product introduction

Specification parameters

Product	Product model	Capacity	Protocol standard	NAND	Package	Dimensions	Working temperature	Storage temperature
LPDDR4-3200	KL41S01256M32D1BNP-DDD01ST	8Gb	LPDDR4-3200	SDP 20nm	FBGA200	1014.51.0mm.max	-25℃~85℃	-40℃~95℃
	KL41S01512M32D1BNP-DDD01ST	16Gb	LPDDR4-3200	DDP 20nm	FBGA200	1014.51.0mm.max	-25℃~85℃	-40℃~95℃
	KL41S02512M32D2BNP-DDD01ST	16Gb	LPDDR4-3200	DDP 18nm	FBGA200	1014.51.0mm.max	-25℃~85℃	-40℃~95℃
	KL41S03768M32D4BNP-DDD01ST	24Gb	LPDDR4-3200	QDP 18nm	FBGA200	1014.51.0mm.max	-25℃~85℃	-40℃~95℃
	KL41S021024M32D4BNP-DDD01ST	32Gb	LPDDR4-3200	QDP 18nm	FBGA200	1014.51.0mm.max	-25℃~85℃	-40℃~95℃
LPDDR4X-3200	KLXCMBCD02-EL0M	16Gb	LPDDR4X-3200	DDP 19nm	FBGA200	10151.0mm.max	-25℃~85℃	-40℃~95℃
LPDDR4X-3200	KLXCMBCD02-EL0M	16Gb	LPDDR4X-3200	DDP 19nm	FBGA200	10151.0mm.max	-25℃~85℃	-40℃~95℃
