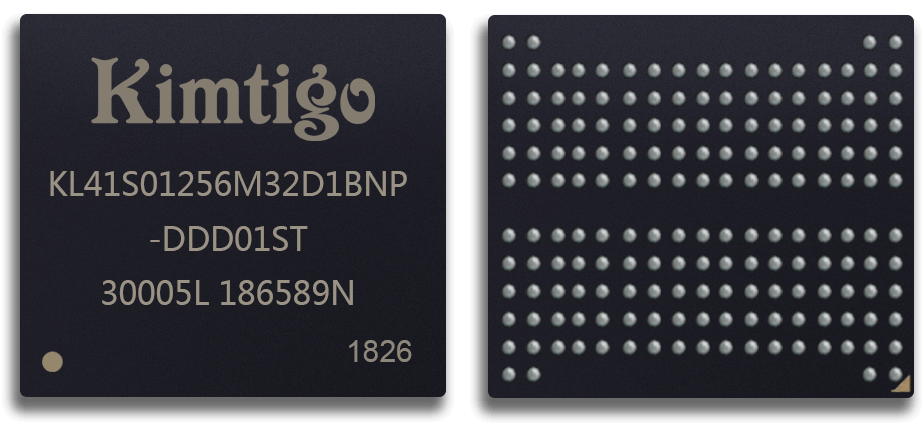

LPDDR3-1866

Product features

•Transmission rate: 1866mb / s Max;
•Speed class, access period: 1.07ns@RL=14。Short access period, fast boot, fast read-write and smooth user experience;
•Accordance with the JEDEC standard of JESD209-3C;
•Environment-friendly halogen-free process.

INQUIRY

Product introduction

Specification parameters

Product	Product model	Capacity	Protocol standard	NAND	Package	Dimensions	Working temperature	Storage temperature
LPDDR3-1866	KL31S00128M32D1LPF-DDD01ST	4Gb	LPDDR3-1866	SDP 20nm	FBGA178	1111.51.0mm.max	-25℃~85℃	-40℃~95℃
	KL31S00356M32D1LPF-DDD01ST	8Gb	LPDDR3-1866	SDP 20nm	FBGA178	1111.51.0mm.max	-25℃~85℃	-40℃~85℃
	KL31S04256M32D2LPF-DDD01ST	8Gb	LPDDR3-1866	DDP 20nm	FBGA178	1111.51.0mm.max	-25℃~85℃	-40℃~85℃
	KL31S00512M32D2LPF-DDD01ST	16Gb	LPDDR3-1866	DDP 20nm	FBGA178	11.5131.0mm.max	-25℃~85℃	-40℃~85℃
