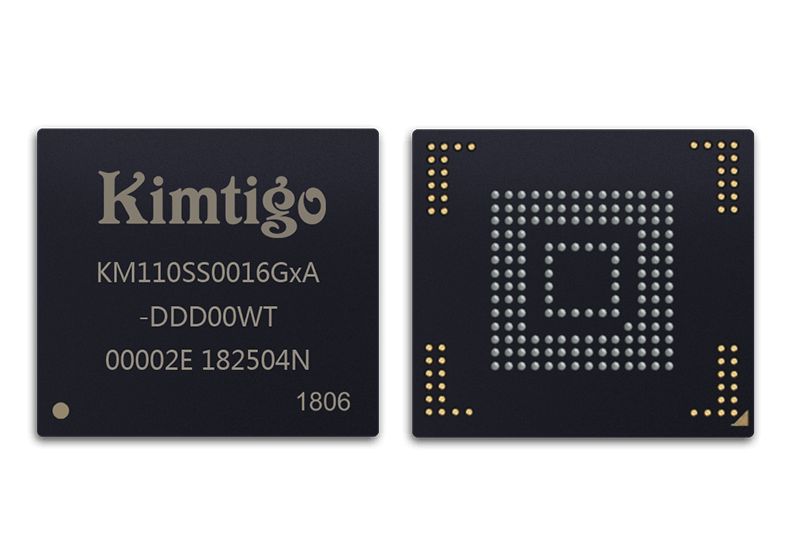

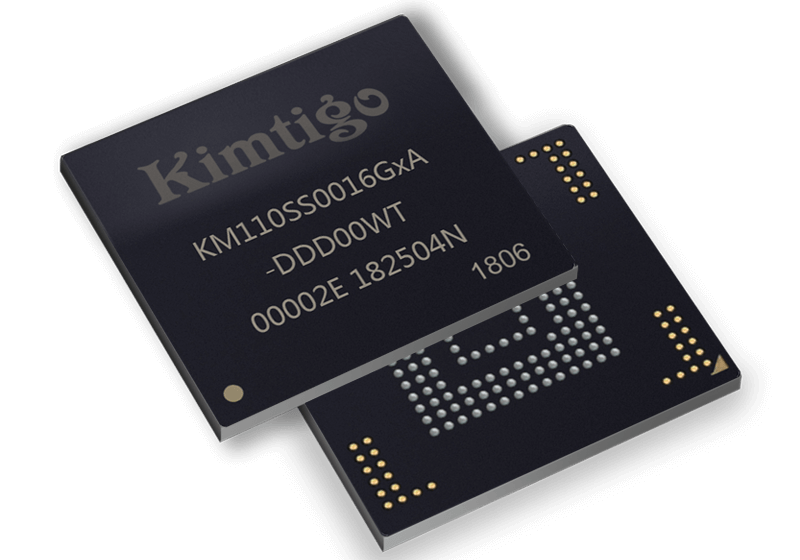

Kimtigo eMMC 5.1
Kimtigo eMMC 5.1

Kimtigo eMMC 5.1

Product features
•Data Acceleration Mode: to greatly improve the read-write performance of the product, optimize the user experience and improve production efficiency;
•Dynamic/static wear leveling algorithm: to intelligently optimize the data distribution and extend the life of flash memory;
•Proactive read-disturb replacement: to discover and avoid data interference in advance for long-term and normal service of the product;
•Enhanced ECC: to enhance error correction capability by at least 30% than common ECC;
•Life cycle management of bad blocks to intelligently manage bad blocks of the flash memory to extend its service life;
•Unanticipated power-loss protection: protection for more than 100,000 times of abnormal power loss to protect users from data loss.
INQUIRY
Product introduction
Specification parameters
  • ProductProduct modelCapacityProtocol standardNANDPackageDimensionsWorking temperatureStorage temperature
    Kimtigo   eMMC 5.1KM110SA2008GxA-DDD00WT8GBeMMC 5.12D MLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM1SA3016G-A00W16GBeMMC 5.12D MLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM210LM0032GxA-AAA00WT32GBeMMC 5.13D TLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM110SA1032GxA-AAA00WT32GBeMMC 5.13D TLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM310MA4032GxA-AAA00WT32GBeMMC 5.13D TLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM310MY1032GxA-AAA00WT32GBeMMC 5.13D TLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM3MA5032G-A00W32GBeMMC 5.13D TLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM3MA6064G-A00W64GBeMMC 5.13D TLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM110SA1064GxA-AAA00WT64GBeMMC 5.13D TLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM210LM0064GxA-AAA00WT64GBeMMC 5.13D TLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM310MY1064GxA-AAA00WT64GBeMMC 5.13D TLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM210LM0128GxA-AAA00WT128GBeMMC 5.13D TLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
    KM3MA6128G-A00W128GBeMMC 5.13D TLCFBGA15311.5*13mm-25℃~85℃-40℃~85℃
