Industrial Control Equipment Solution
Industrial control equipment is used in complex operating environment and they are susceptible to interference, temperature difference, vibration and other factors. The industrial-grade storage products of Kimtigo use PCIe3.0x4 single-panel design, which is faster, lighter, thinner and smaller, and provide a Mean Time Between Failure (MTBF) of 1 million hours. With such extremely strong stability, the storage products apply to different scenarios such as power plants and automation.
INQUIRY
Typical Product of Industrial Control Equipment Solution
·PCIe3.0x4 with single-panel, thinner and more compact design and faster processing speed, suitable for various application scenarios;
·Better compatible with domestic platforms, based on AVL certification of Loongson, Zhaoxin and Phytium;
·Capacity greatly improved and cost reduced by using 3D TLC;
| Model | M.2 2280 |
| Interface | PCIe3.0x4 |
| Master | SM2263XT |
| flash | 3D TLC |
| Capacity | 128GB~1TB |
| DRAM | NO |
| Continuous read speed up to | 2200MB/s |
| Continuous writing speed up to | 1700MB/s |
| 4KB random read speed up to | 120000IOPS |
| 4KB random write speed up to | 96000IOPS |
| Voltage | 3.3V |
| Working temperature | 0℃-70°C |
| MTBF | 1500000 Hours |
| TBW | 128GB：60TBW |
| 256GB：120TBW |
| 512GB：240TBW |
| 1TB：480TBW |
| Application field | Notebook computer, tablet computer, finance, industrial control equipment |
·Independently developed solution to optimize efficiency of data copying;
·Better compatible with domestic platforms, based on AVL certification of Loongson, Zhaoxin and Phytium;
·The shape of mSATA used to meet the manufacture and development of small-sized CE products and provide storage solutions with higher efficiencies and economic benefits;
·Capacity greatly improved and cost reduced by using 3D TLC.
| Shape interface | mSATA |
| Interface | SATA Ⅲ |
| Master | MAS0902 |
| flash | 3D TLC |
| Capacity | 128GB~512GB |
| DRAM | NO |
| Continuous read speed up to | 550MB/s |
| Continuous writing speed up to | 500MB/s |
| 4KB random read speed up to | 64000IOPS |
| 4KB random write speed up to | 45000IOPS |
| Voltage | 3.3V |
| Working temperature | 0℃-70°C |
| MTBF | 1500000 Hours |
| TBW | 128GB：60TBW |
| 256GB：120TBW |
| 512GB：240TBW |
| Application field | Notebook computer, tablet computer, finance, car, industrial control equipment |
• Design in accordance with the JEDEC standard;
•Built-in ECC and Parity functions;
• Synchronous data signal and consistent driving force in high-speed multi-load environment;
• High-standard PCB design with 8-10 layers of boards;
•30 μ industrial gold-finger process;
•Server-class original DRAM chips selected.
| Model | Bandwidth | Capacity | Voltage | Working temperature | CL | Pin | Gold finger |
| Low temperature | High temperature |
| -40°C | -20°C | 0°C | 85°C | 95°C |
| DDR4-3200 REG UDIMM | PC4-25600 | 8GB-64GB | 1.2V | * | * | * | * | * | CL22 | 288-pin | 30μ" |
| DDR4-2933 REG UDIMM | PC4-23400 | 16GB-32GB | 1.2V | * | * | * | * | * | CL21 | 288-pin | 30μ" |
| DDR4-2666 REG UDIMM | PC4-21300 | 16GB-32GB | 1.2V | * | * | * | * | * | CL19 | 288-pin | 30μ" |
| DDR4-2400 REG UDIMM | PC4-19200 | 4GB-16GB | 1.2V | * | * | * | * | * | CL17 | 288-pin | 30μ" |
| DDR4-2133 REG UDIMM | PC4-17000 | 4GB-32GB | 1.2V | * | * | * | * | * | CL15 | 288-pin | 30μ" |
| *Indicates optional |

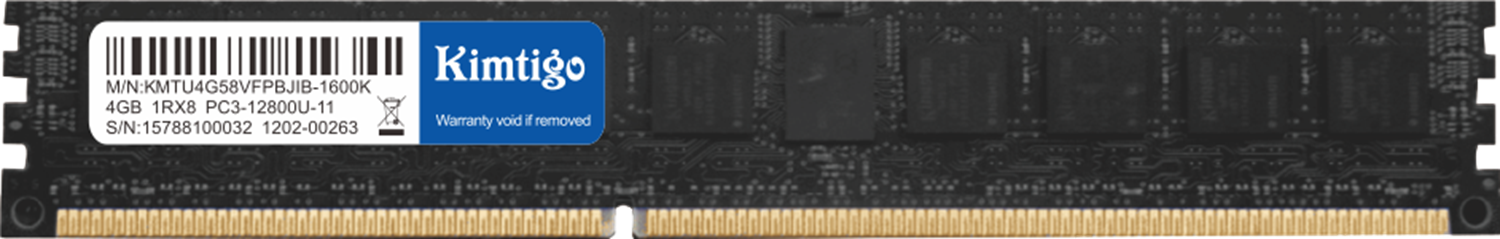

• Design in accordance with the JEDEC standard;
• 18.75mm-high VLP;
• Built-in ECC and Parity functions;
•Synchronous data signal and consistent driving force in high-speed multi-load environment;
• High-standard PCB design with 8-10 layers of boards;
• 30 μ industrial gold-finger process;
• Server-class original DRAM chips selected.
| Model | Bandwidth | Capacity | Voltage | Working temperature | CL | Pin | Gold finger |
| Low temperature | High temperature |
| -40°C | -20°C | 0°C | 85°C | 95°C |
| DDR4-2666 REG UDIMM VLP | PC4-21300 | 4GB-8GB | 1.2V |
| * | * | * | * | CL19 | 288-pin | 30μ" |
| DDR4-2133 REG UDIMM VLP | PC4-17000 | 4GB-8GB | 1.2V | * | * | * | * | * | CL15 | 288-pin | 30μ" |
| *Indicates optional |
